Bucyrus Continuous Miners Excel in Underground Potash Mine
The success of its first unit has led satisfied Canadian customer Agrium to make the Bucyrus 30M4-NP the standard for its fleet of continuous miners and to request modifications for a follow-up order for an additional three 30M4-NPs for use in its underground potash mining operation.
The successful operation of a first 30M4-NP delivered in 2004 led to an order for a further three units, which were delivered by August 20, 2010. Extensive modifications were incorporated by a team of engineers working closely with the customer for over two years.
One of the major challenges was to convert the cooling system from a glycol to oil system to allow operation of the miners in very hot conditions. The cooling system also had to be redesigned to fit within the same footprint, while at the same time easing the transition from flat ground to a grade during uphill mining to avoid ground contact, as all three continuous miners will be cutting extensively on grades of up to 20 degrees.
Other changes include voltage-segregated electrical enclosures, a new control system, modifications to the frame, new cover layouts, and a new layout of the operator’s cab.
The customer requested an electrical control system that operators were familiar with and that would facilitate operator access to individual components. With a modular design, the control system also allows growth to accommodate future functionality. A completely new cover package was implemented for the continuous miners to accommodate the new electrical and cooling systems.
The custom 30M4-NPs weigh in at 165,000 pounds (74.843 metric tons) and can mine seams of 71 to 182 inches (1.80 to 4.63 m). The Bucyrus 30M4-NP is designed for used in soft-rock applications such as potash, trona, phosphates, gypsum, and salt. In this case, the 30M4-NPs will be used exclusively for mining potash – a soft mineral used primarily in fertilizer.
Close collaboration between Bucyrus team members at Bucyrus’s Pennsylvania and Utah facilities – who developed a close relationship with the customer by listening to their needs, understanding the application, and delivering a reliably productive product – contributed to the success of the project.
Other features that contribute to the success of the Bucyrus 30M4-NP in this role include:
•Increased brake capacity with faster set and release times to facilitate operation on steep grades
•Improved geometry to prevent material accumulation and to ease transition to and from steep grades
•Modular design to comply with mine-site restrictions for hoist capacity and shaft dimensions
•Non-XP electrics and enclosures
•4160 V input voltage to replace the standard 995 V supply
•Oil-cooling system to replace the standard glycol-based system
The customer has retained a purchase option for further Bucyrus 30M4-NP Continuous Miners. With a proven performance track record, outstanding reliability, and OEM support, as well as a supplementary spares package, Bucyrus looks forward to continued close collaboration.
About Bucyrus International, Inc.
Bucyrus is a world leader in the design and manufacture of high-productivity mining equipment for the surface and underground mining industries. Bucyrus surface mining equipment is used for mining coal, copper, iron ore, oil sands and other minerals. Bucyrus underground mining equipment is used primarily for mining coal, and also used for mining minerals such as potash and trona. In addition to machine manufacturing, Bucyrus manufactures high-quality OE parts and provides world-class support services for their machines. Bucyrus’ corporate headquarters is located in Oak Creek, Wisconsin, USA.
Bucyrus Continuous Miners
Bucyrus Continuous Miners Excel in Underground Potash Mine
The success of its first unit has led satisfied Canadian customer Agrium to make the Bucyrus 30M4-NP the standard for its fleet of continuous miners and to request modifications for a follow-up order for an additional three 30M4-NPs for use in its underground potash mining operation.
The successful operation of a first 30M4-NP delivered in 2004 led to an order for a further three units, which were delivered by August 20, 2010. Extensive modifications were incorporated by a team of engineers working closely with the customer for over two years.
One of the major challenges was to convert the cooling system from a glycol to oil system to allow operation of the miners in very hot conditions. The cooling system also had to be redesigned to fit within the same footprint, while at the same time easing the transition from flat ground to a grade during uphill mining to avoid ground contact, as all three continuous miners will be cutting extensively on grades of up to 20 degrees.
Other changes include voltage-segregated electrical enclosures, a new control system, modifications to the frame, new cover layouts, and a new layout of the operator’s cab.
The customer requested an electrical control system that operators were familiar with and that would facilitate operator access to individual components. With a modular design, the control system also allows growth to accommodate future functionality. A completely new cover package was implemented for the continuous miners to accommodate the new electrical and cooling systems.
The custom 30M4-NPs weigh in at 165,000 pounds (74.843 metric tons) and can mine seams of 71 to 182 inches (1.80 to 4.63 m). The Bucyrus 30M4-NP is designed for used in soft-rock applications such as potash, trona, phosphates, gypsum, and salt. In this case, the 30M4-NPs will be used exclusively for mining potash – a soft mineral used primarily in fertilizer.
Close collaboration between Bucyrus team members at Bucyrus’s Pennsylvania and Utah facilities – who developed a close relationship with the customer by listening to their needs, understanding the application, and delivering a reliably productive product – contributed to the success of the project.
Other features that contribute to the success of the Bucyrus 30M4-NP in this role include:
•Increased brake capacity with faster set and release times to facilitate operation on steep grades
•Improved geometry to prevent material accumulation and to ease transition to and from steep grades
•Modular design to comply with mine-site restrictions for hoist capacity and shaft dimensions
•Non-XP electrics and enclosures
•4160 V input voltage to replace the standard 995 V supply
•Oil-cooling system to replace the standard glycol-based system
The customer has retained a purchase option for further Bucyrus 30M4-NP Continuous Miners. With a proven performance track record, outstanding reliability, and OEM support, as well as a supplementary spares package, Bucyrus looks forward to continued close collaboration.
About Bucyrus International, Inc.
Bucyrus is a world leader in the design and manufacture of high-productivity mining equipment for the surface and underground mining industries. Bucyrus surface mining equipment is used for mining coal, copper, iron ore, oil sands and other minerals. Bucyrus underground mining equipment is used primarily for mining coal, and also used for mining minerals such as potash and trona. In addition to machine manufacturing, Bucyrus manufactures high-quality OE parts and provides world-class support services for their machines. Bucyrus’ corporate headquarters is located in Oak Creek, Wisconsin, USA.
For more information, please visit:
https://edir.bulk-online.com/oldedir...mbh-206301.htmbucyrus europe gmbh 206301.htm
https://edir.bulk-online.com/oldedirredirect/206302.htm206302.htm
Google Search:
http://www.google.de/search?client=s...H4bLsgbF--CtCgsearch?client=safari&rls=en&q=Bucyrus++site:bulk online.com&ie=UTF 8&oe=UTF 8&rediresc=&ei=pqPvTaCfH4bLsgbF CtCg
Attachments

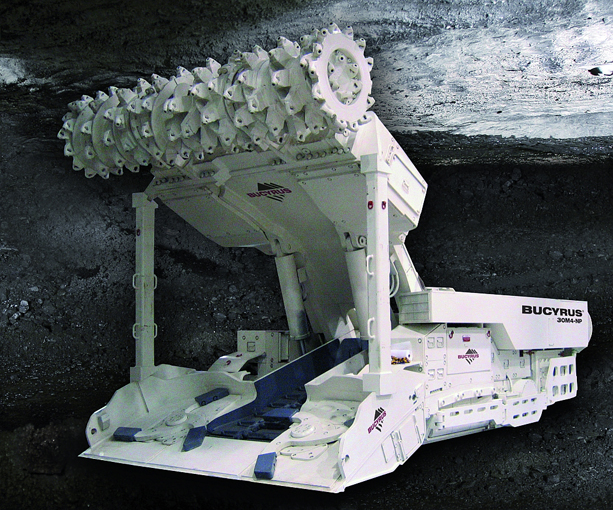

bucyrus continuous miners_cm 30m4-np (JPG)
