Many thanks to Seely,

Dear Reinhard Wöhlbier, Teus Tuinenburg,

One client asked me for the Ibau Pump & Aerzen Blower.

Please help me advise the calculation for this case :

With the screw pump Ibau Hamburg IB-D350 and the blower Aerzen Delta Vm 140 we are keeping in our factory, and the spec of the customer project as follow :

The capacity of the mill is 100 t/h.

The silo is about 80 m from the milling house.

The silo height = 100 m.

We can or can not supply these equipments for them?

We look forward to receiving your reply soon,

Best Regards,

Nguyen Ton Nam - Director

Tmccranes Company

90/5c12 Quang Trung Street, Hochiminh City, Vietnam.

tmccranes@gmail.com

+84 908002134 mobile

+84 89210558 office ■

Dear Teus Tuinenburg,

Many thanks for your reply.The spec of machines as follow :

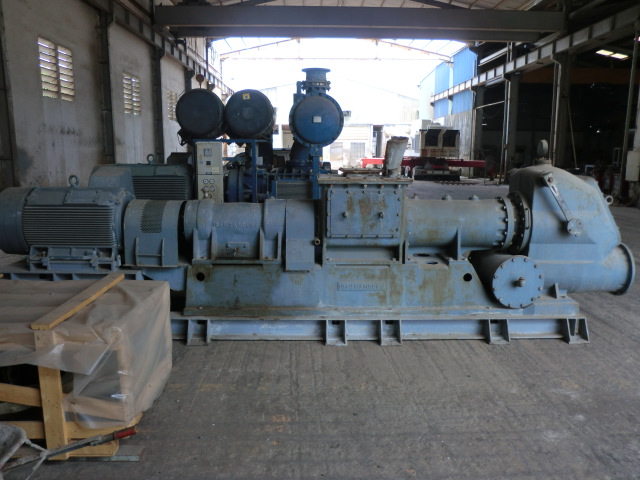

Pneumatic screw pump model IB-D350

Type IBD350-12/6/6328

Com - No 0.12725

Motor Siemens

Type ILA 8317-6AB60-Z

Output 250 Kw

Volttage/frequency 400 - 690Volt/ 50 Hz

Type of protection Ip 55

Designation Three phase ac squirrel-cage motor.

Manufacture Ibau Hamburg – Germany

Year of manufacture 2001

Air inlet flange Hole D350 x two side.(ID)

Cement oulet flangeHole D400 in front of (ID)

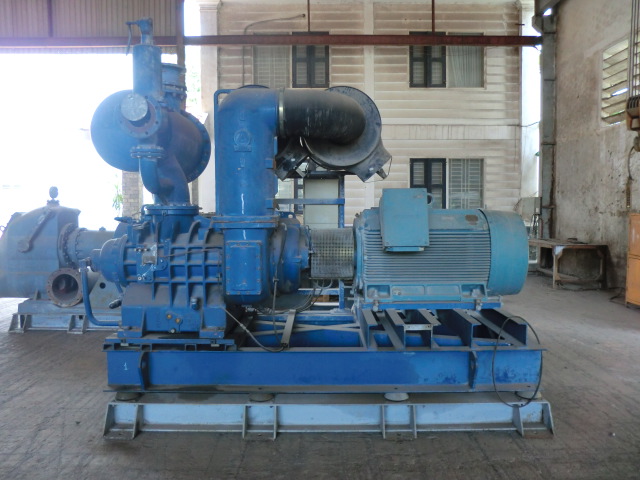

Screw blower Aerzen Vm 140

Brand nameAERZEN

Type VM140 (537D) / DN250

Serial No 785418

Inlet pressure P1 1.0 bar

Inlet temperature 20 o C

Flow at inlet 132.92 m3/min at 412 Kw

Compressor speed 4847 r/min

Motor speed 1470 r/min

Press. different P2 2.250 bar.

Motor rating 450 Kw

Oil volume 1tr

Sound press. Level > 85 dB A

Type of protection Ip 55 Volttage / frequency:400 Volt/ 50 Hz

Motor Siemens

Year of manufacture 2001

Manufacture Aerzen – Germany

Best regards,

Nguyen Ton Nam ■

Dear Teus,

Happy New Year and all best wishes to you and your family.

Please help me in this case. One client wanted to buy these equipments now.

They asked me how to installation these equipments with the length around 1.200 M

They calculated capacity in cement (40 degrC) is from 100 ton/hr to 150 ton/hr and pumping cement to the ship from the trucks.

What are size of the discharge hopper, filter size on top of the discharge hopper and the size of pipe diameter ?

Thanks and Best Regards,

Nguyen Ton Nam. ■

Dear Teus,

Many thanks for your reply.

They are just planing, nt yet canculation for this project so that is just required.( Lump sum 100 tons to 150 tons/hr)

They use the bulk trucks to load cement from factory to port and use pneumatic screw pump to load cement into the ship.

Distance from the pneumatic screw pump station the ship around 1.200 M and the bulk trucks capacity is 70 tons/truck.

I meaning with our equipment (Ibau Hamburg IBD 350 & Earzen Vm140), how we calculate the system for them?



Best Regards,

Ton Nam

Originally Posted by Teus Tuinenburg

Dear Nguyen Ton Nam,

The intended installation, which you propose is not quite clear to me.

The conveying length is 1200 m

The required or acceptable capacity is calculated as 100 to 150 tons/hr.

If they have calculated the system, then a pipe size and conveying pressure must also be known.

Do you have those figures?

I assume that the calculation is executed for the equipment, mentioned in the previous threads.

Then the pipe size and the filter size should be the same as in the previous thread.

What puzzles me is the function of the bulk trucks.

Are they discharging into a hopper , from where the installation conveys the cement to a ship over 1200 m?

Then how many trucks are operating parallel at the same time into the hopper?

Unloading 150 tons/hr by bulk trucks means 5 bulk trucks per hour at 30 minutes per truck, gives a minimum of 3 bulk truck loading pipes into the hopper.

Have a nice day

■

[QUOTE=Teus Tuinenburg;84907]Dear Nguyen Ton Nam,

A preliminary quick calculation results in:

-Compressor Aerzen VM410 at 4847 rpm

-Conveying length = 1200 m

-Pipe line diameter 16” (DN400)

-Filter area 260 m2

-cement conveying capacity 166 tons/hr at 2 barg

-energy consumption approx. 4.5 kWh ton

The IBAU screw pump D350 might be too big for 166 tons/hr (It could be necessary to reduce the rpm)

Check with the supplier.

Dear Teus,

Many thanks for your reply.

With your quick calculation results, what is the maximumn capacity the conveyor line can load to the ship with conveying length = 1200 m ?

Best regards,

Ton Nam. ■
