BAG DUMPING SYSTEM WITH GLOVE BOX, COMPACTOR, CONVEYOR
Whitstable, Kent, U.K. - A new Flexicon Bag Dumping System with glove box, bag compactor and flexible screw conveyor, isolates bulk material from the operator and plant environment throughout opening, dumping and compaction of bags, and the conveying of material downstream.
Bags are staged on a stainless steel tabletop and then transferred through a plastic strip curtain into a dumping enclosure comprised of a glove box, empty-bag chute and dust collector atop a receiving hopper.
The dust collector maintains negative pressure within the enclosure, preventing the escape of dust through the curtain, while containing dust generated during bag opening and dumping activities.
A bag infeed chute through the sidewall of the enclosure allows the operator to pass empty bags directly into the bag compactor, causing dust generated from compaction as well as dumping activities to be drawn onto the system's two filter cartridges.
An automatic reverse-pulse filter cleaning system releases short blasts of compressed air inside the filters at timed intervals causing dust build-up on the outer surfaces to fall into the hopper, conserving useable product. Filters are readily accessed by removing the interior baffle, and replaced rapidly using quick-disconnect fittings.
The compactor employs a large pneumatic air cylinder to compress bags into a removable bin that accommodates 50 to 80 bags. The main waste access door, and a flapper door within the bag infeed chute, are equipped with safety interlocks that prevent operation of the compactor unless both doors are closed.
The hopper discharges into an enclosed Flexicon flexible screw conveyor for dust-free transfer of a broad variety of products including free- and non-free-flowing materials from large pellets to sub-micron powders, including products that pack, cake, seize, smear, fluidise, break apart or separate, with no separation of blended products.
The company also manufactures pneumatic conveying systems, bulk bag dischargers, bulk bag conditioners, bulk bag fillers, drum/box/container tippers, drum fillers, weigh batching and blending systems, and engineered plant-wide bulk handling systems with automated controls.
(double click on picture)

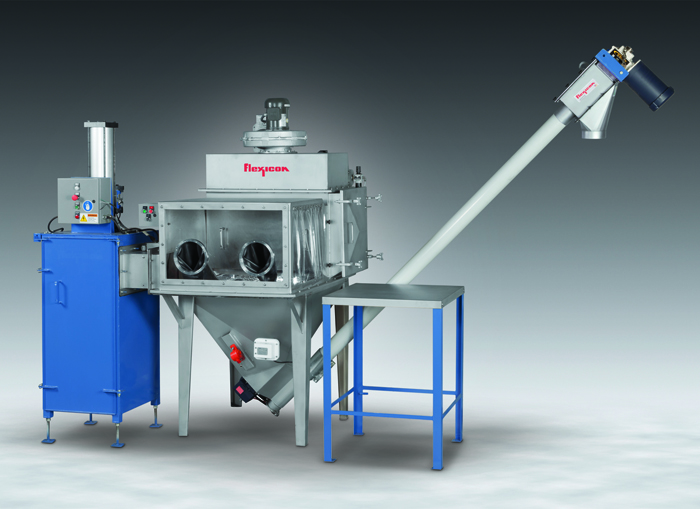

Dust generated from bag opening, dumping and compaction is isolated from the operator and plant environment by means of a glove box, dust collector and integral bag compactor with sealed infeed chute. An enclosed Flexicon flexible screw conveyor transfers material downstream at any angle, dust-free.
(double click on picture)

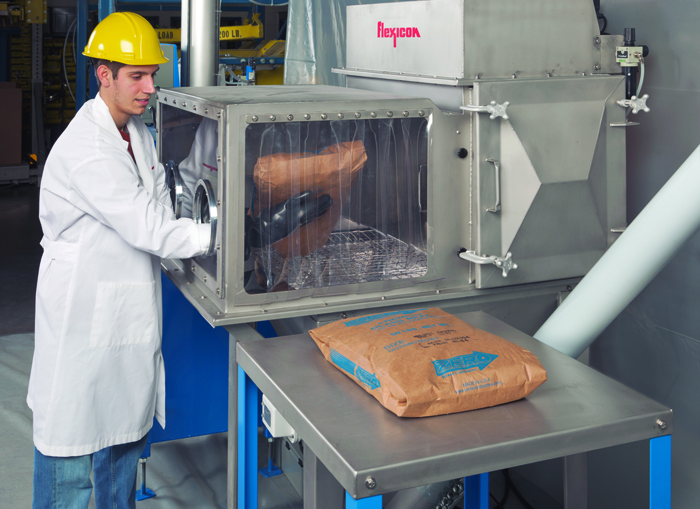

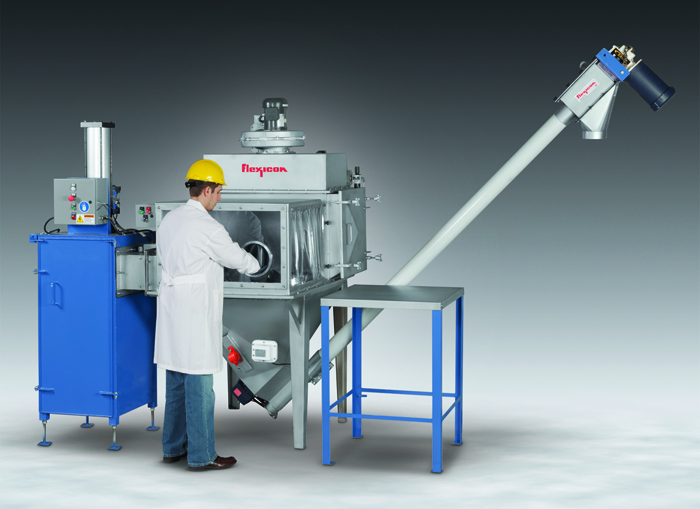

The operator is isolated from dust by means of a dumping hood comprised of a plastic strip curtain, glove box, empty-bag infeed chute, and dust collector atop a receiving hopper feeding an enclosed flexible screw conveyor.
(double click on picture)

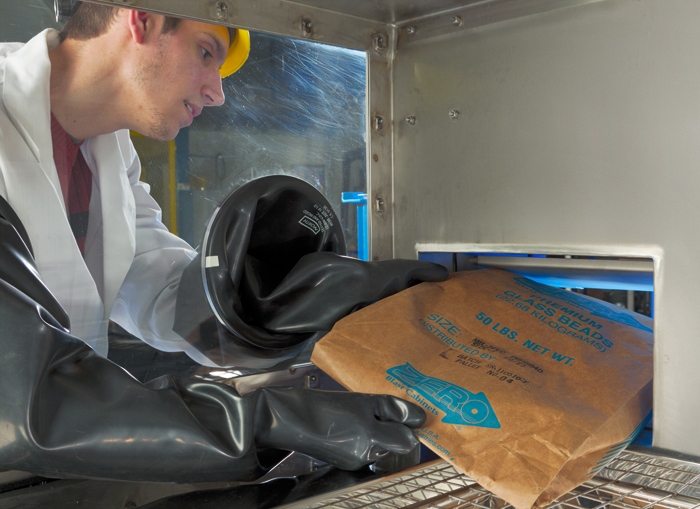

An operator transfers empty bags from the glove box side of the enclosure through a bag infeed chute in the enclosure sidewall, drawing dust generated from bag compaction as well as dumping activities into the integral dust collection system.
Keywords:
Bag compactor, Sack compactor, Bag dump station, Bag dump system, Manual dumping station, Manual dumping system, Flexible screw conveyor, Dust collector, Dust prevention, Dust-free bag dumping, Dust-free sack dumping
New Flexicon Bag Dump System
BAG DUMPING SYSTEM WITH GLOVE BOX, COMPACTOR, CONVEYOR
Whitstable, Kent, U.K. - A new Flexicon Bag Dumping System with glove box, bag compactor and flexible screw conveyor, isolates bulk material from the operator and plant environment throughout opening, dumping and compaction of bags, and the conveying of material downstream.
Bags are staged on a stainless steel tabletop and then transferred through a plastic strip curtain into a dumping enclosure comprised of a glove box, empty-bag chute and dust collector atop a receiving hopper.
The dust collector maintains negative pressure within the enclosure, preventing the escape of dust through the curtain, while containing dust generated during bag opening and dumping activities.
A bag infeed chute through the sidewall of the enclosure allows the operator to pass empty bags directly into the bag compactor, causing dust generated from compaction as well as dumping activities to be drawn onto the system's two filter cartridges.
An automatic reverse-pulse filter cleaning system releases short blasts of compressed air inside the filters at timed intervals causing dust build-up on the outer surfaces to fall into the hopper, conserving useable product. Filters are readily accessed by removing the interior baffle, and replaced rapidly using quick-disconnect fittings.
The compactor employs a large pneumatic air cylinder to compress bags into a removable bin that accommodates 50 to 80 bags. The main waste access door, and a flapper door within the bag infeed chute, are equipped with safety interlocks that prevent operation of the compactor unless both doors are closed.
The hopper discharges into an enclosed Flexicon flexible screw conveyor for dust-free transfer of a broad variety of products including free- and non-free-flowing materials from large pellets to sub-micron powders, including products that pack, cake, seize, smear, fluidise, break apart or separate, with no separation of blended products.
The company also manufactures pneumatic conveying systems, bulk bag dischargers, bulk bag conditioners, bulk bag fillers, drum/box/container tippers, drum fillers, weigh batching and blending systems, and engineered plant-wide bulk handling systems with automated controls.
(double click on picture)
Dust generated from bag opening, dumping and compaction is isolated from the operator and plant environment by means of a glove box, dust collector and integral bag compactor with sealed infeed chute. An enclosed Flexicon flexible screw conveyor transfers material downstream at any angle, dust-free.
(double click on picture)
The operator is isolated from dust by means of a dumping hood comprised of a plastic strip curtain, glove box, empty-bag infeed chute, and dust collector atop a receiving hopper feeding an enclosed flexible screw conveyor.
(double click on picture)
An operator transfers empty bags from the glove box side of the enclosure through a bag infeed chute in the enclosure sidewall, drawing dust generated from bag compaction as well as dumping activities into the integral dust collection system.
