Bulk solids handling specialists, Flexicon (Europe) Ltd. have extended the range of drum dumpers with the addition of an all-new Drum Dumper that seals drums against a discharge cone, tips the drum, mates the cone against a gasketted connection and discharges bulk material dust-free through a slide gate valve.
Trademarked TIP-TITE™, the dumper accommodates drums from 115 to 210 l.
The drum platform is raised by a single hydraulic cylinder, creating a dust-tight seal between the rim of a drum and the underside of the discharge cone. A second hydraulic cylinder tips the platform-hood assembly and drum, stopping at dump angles of 45, 60 or 90 degrees with a motion-dampening feature. The vertically oriented cone mates with a gasketted inlet port fitted to the lid of an optional hopper with integral flexible screw conveyor or pneumatic pick-up adapter or to existing process equipment.
A pneumatically actuated slide gate valve prevents material flow until the discharge cone has been properly seated in the gasketted receiving ring.
The drum dumper is available in mild steel with durable industrial finishes, with material contact surfaces of stainless steel or in all-stainless steel finished to food, dairy, pharmaceutical or industrial standards.
Flexicon also manufactures flexible screw conveyors, pneumatic conveying systems, bulk bag dischargers, bulk bag conditioners, fillers for bulk bags, bag dump stations, lift-an-seal drum dumpers, weigh batching and blending systems, and automated, plant-wide bulk handling systems for handling, bulk chemical, food, dairy and pharmaceutical products

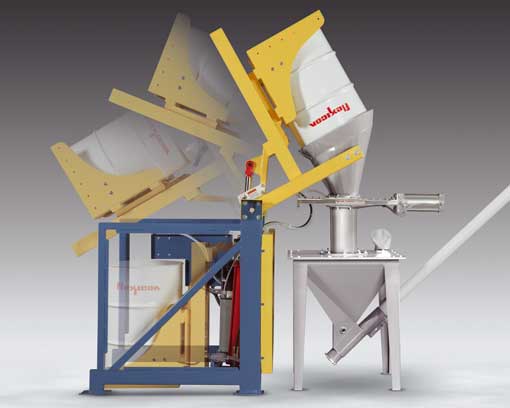

Photo: TIP-TITE™ Drum Dumper seals drum rim against a discharge cone, tips the drum, mates the cone against a gasketted connection, and discharges bulk material dust-free through a slide gate valve.
New Flexicon Drum Dumper
NEW DRUM DUMPER BY FLEXICON
Bulk solids handling specialists, Flexicon (Europe) Ltd. have extended the range of drum dumpers with the addition of an all-new Drum Dumper that seals drums against a discharge cone, tips the drum, mates the cone against a gasketted connection and discharges bulk material dust-free through a slide gate valve.
Trademarked TIP-TITE™, the dumper accommodates drums from 115 to 210 l.
The drum platform is raised by a single hydraulic cylinder, creating a dust-tight seal between the rim of a drum and the underside of the discharge cone. A second hydraulic cylinder tips the platform-hood assembly and drum, stopping at dump angles of 45, 60 or 90 degrees with a motion-dampening feature. The vertically oriented cone mates with a gasketted inlet port fitted to the lid of an optional hopper with integral flexible screw conveyor or pneumatic pick-up adapter or to existing process equipment.
A pneumatically actuated slide gate valve prevents material flow until the discharge cone has been properly seated in the gasketted receiving ring.
The drum dumper is available in mild steel with durable industrial finishes, with material contact surfaces of stainless steel or in all-stainless steel finished to food, dairy, pharmaceutical or industrial standards.
Flexicon also manufactures flexible screw conveyors, pneumatic conveying systems, bulk bag dischargers, bulk bag conditioners, fillers for bulk bags, bag dump stations, lift-an-seal drum dumpers, weigh batching and blending systems, and automated, plant-wide bulk handling systems for handling, bulk chemical, food, dairy and pharmaceutical products
