Hygienic Feeding: The Brabender Hygienic Line (Continued)
Brabender FlexWall®Food Feeder
The Brabender FlexWall®Food Feeder is a food-proof variant of the Brabender FlexWall®Plus Feeder and allows flexible feeder adaptation to different demands made by the food industry thanks to a variable package of options. Options available include special food-proof PUR hoppers, stainless steel motor enclosures, acid-resistant and food-proof motor paints, special stainless steel versions of base plates, junction boxes, mounting units and load cells, outlet downspouts and flexible connection sleeves made of food-proof PUR, casings and extension hoppers with directional grinding finish, radial corners and many more.
For more information, please visit:
href="https://edir.bulk-online.com/profile/1246-brabender-technologie.htm" target="blank">https://edir.bulk-online.com/profile...echnologie.htm
href="http://www.google.com/search?hl=de&client=safari&rls=de-de&q=Brabender+site%3Abulk-online.com&btnG=Suche&lr=" target="blank">http://www.google.com/search?hl=de&c...btnG=Suche&lr=
Attachments
■
Hygienic Feeding: The Brabender Hygienic Line (Continued)
Brabender FlexWall®Sanitary Feeder
The Brabender FlexWall®Sanitary Feeder is a variant of the Brabender FlexWall®Plus Feeder, which has been systematically designed for sanitary applications, for instance in the cosmetics and pharmaceutical industries. So - on the one hand - utmost importance was attached to easy dismantling and cleaning. While the basic system already allows easy dismounting of the flexible hopper for wet or dry cleaning or - in case of one- way hoppers - for disposal, this was additionally put into practice for instance by the utilisation of quick connect couplings and quick connect screw joints for easy dismounting of component groups without tools. On the other hand, a particular goal was the effective prevention of contamination by microbiologically, chemically and physiologically harmful substances. This was achieved by using physiologically uncritical, FDA approved materials resistant to cleansing agents and disinfectants, high-quality stainless steels and a wide range of designing and manufacturing measures to prevent pores, recesses and hollows, which might otherwise promote bacteriological contamination due to deposits of dirt and liquids. For free flowing ingredients without the need of agitation the weigh-feeder is also available without paddles.
For more information, please visit:
href="https://edir.bulk-online.com/profile/1246-brabender-technologie.htm" target="blank">https://edir.bulk-online.com/profile...echnologie.htm
href="http://www.google.com/search?hl=de&client=safari&rls=de-de&q=Brabender+site%3Abulk-online.com&btnG=Suche&lr=" target="blank">http://www.google.com/search?hl=de&c...btnG=Suche&lr=
Attachments
■
Hygienic Feeding: The Brabender Hygienic Line (Continued)
Brabender FlexWall®Pharma Feeder
The Brabender FlexWall®Pharma Feeder combines the advantages of the FlexWall® principle featuring a paddle-massaged flexible hopper and compliance with the great demands made on hygiene by the pharmaceutical industry. The unit is designed for quick dismantling and cleaning. For disassemby, the feed unit consisting of flexible hopper, gear coupling, screw, screw tube and downspout can be removed as one unit for external dismantling and cleaning. For this purpose all its components are interconnected by quick clamping rings. Housing and extension hopper are also connected by a quick clamping ring. For reassembly, the feed unit is positioned in place and fixed to the gearing by means of the quick clamping ring. The sealing lip of the upper edge of the flexible hopper is then placed between housing and extension hopper. When connecting these by means of the quick clamping ring, the lip is pressed in for tight sealing. All sealings are equivalent to those of aseptic pipeline connections. The sealing system allows interior and exterior wet cleaning. The dynamic sealing at the gearing can be removed for cleaning by opening its quick clamping rings. A protective gas connection is available as an option. All steel parts in touch with the ingredient and the housing are made of stainless steel 1.4404 (≈ AISI 316 L). The flexible hopper consists of FDA approved PUR. The feeder is available as a single or as a twin screw model.
For more information, please visit:
href="https://edir.bulk-online.com/profile/1246-brabender-technologie.htm" target="blank">https://edir.bulk-online.com/profile...echnologie.htm
href="http://www.google.com/search?hl=de&client=safari&rls=de-de&q=Brabender+site%3Abulk-online.com&btnG=Suche&lr=" target="blank">http://www.google.com/search?hl=de&c...btnG=Suche&lr=
Attachments
■
Hygienic Feeding: The Brabender Hygienic Line (Continued)
Learn more about the Brabender Hygienic Line at the
ACHEMA 2009, Frankfurt, Germany, 11-15 May 2009, Hall 6.0, Booth G18-21
For more information, please visit:
https://edir.bulk-online.com/profile...echnologie.htm
http://www.google.com/search?hl=de&c...btnG=Suche&lr= ■
Hygienic feeding: the Brabender Hygienic Line
Hygienic feeding: the Brabender Hygienic Line
The new "Brabender Hygienic Line" is a line-up of special metering feeders complying with the high demands made on hygiene by the food, cosmetics and pharmaceutical industries. According to their respective field of application, the models FlexWall®Food, FlexWall®Sanitary and FlexWall®Pharma feature different design characteristics to prevent contamination by microbiologically, chemically or physiologically harmful substances as well as sophisticated solutions for quick dismantling and cleaning. In addition, a variety of options allows very flexible and economical adaptation to specific requirements. What they have in common is the proven FlexWall® principle featuring a paddle-massaged flexible hopper ensuring optimum mass flow without the disadvantages of stirring agitators. All feeders of the "Hygienic Line" are available either as gravimetric or volumetric models.
For more information, please visit:
https://edir.bulk-online.com/profile...echnologie.htm
http://www.google.com/search?hl=de&c...btnG=Suche&lr=
Attachments

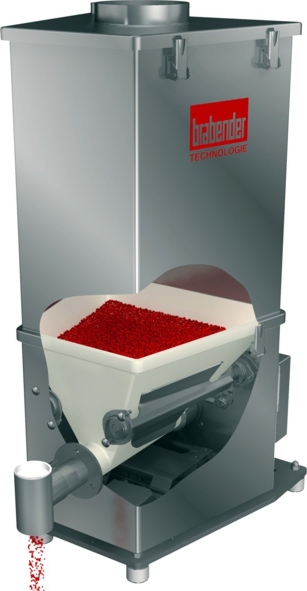

flexwall plus (JPG)

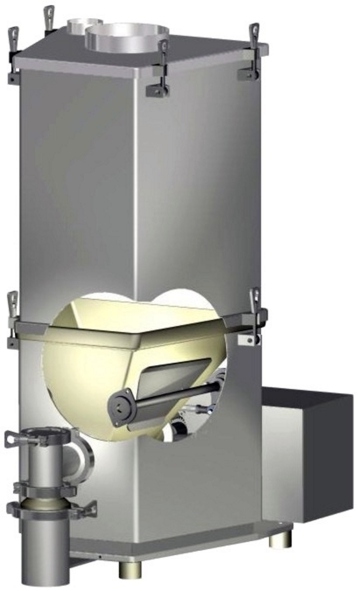

flexwall sanitary (JPG)

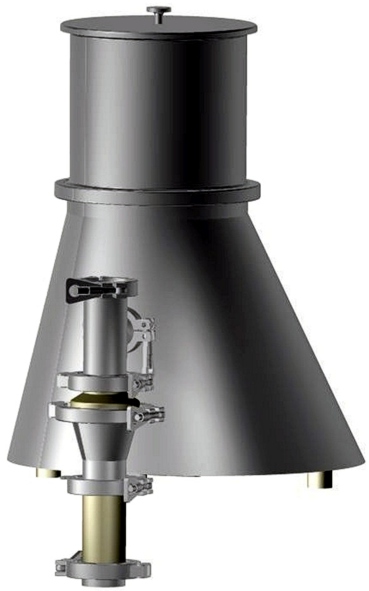

flexwall pharma (JPG)
■
