Ika Mixers & Driers (Continued)
(continued)
The IKA®-Conical Mixer CM
Efficient but gentle mixing of bulk material
IKA® Conical Mixers type CM are suited for mixing of all free flowing solids, including products with different bulk densities and particle sizes.
Products are gently mixed by means of a special spiral agitator in an overhung position that does not require any shaft seals in contact with the product. The products are intensively mixed in radial and tangential directions. Lateral deflectors induce additional turbulence in the product.
The speed of the spiral agitator is infinitely adjustable and can therefore be adjusted to suit individual product requirements.
The conical form of the vessel enables complete discharge of the product and ensures that the vessel can be easily cleaned. Optionally the vessel cover and agitator can be raised electrically and swivelled aside, enabling easy inspection of the production area.
(continued on next page)
Attachments
■
Ika Mixers & Driers (Continued)
(continued)
The IKA® Conical Drier type CD for solids drying
The jacketed vessel wall and cover of the Conical Drier can be heated, as can the double start spiral agitator. This results in an efficient energy input into the product while maintaining a uniform humidity and temperature distribution within the whole production area.
Bulk material is effectively dried at temperatures up to 200°C and under vacuum. The resulting solvent vapours are extracted by a reversible flow dust filter. The speed of the agitator, over-mounted in the cover, is infinitely adjustable.
Having a lump breaker at the discharge valve even difficult solids can be efficiently discharged.
Optionally the Conical Drier can be equipped with CIP-nozzles and/or load cells.
If required IKA® can also supply complete peripheral equipment for their Conical Drier, such as solids feeders, filling equipment, heating/cooling systems, vacuum systems with solvent condensation and fully automatic electric control.
See photo at the end of this article.
(continued on next page) ■
Ika Mixers & Driers (Continued)
(continued)
Use of IKA® Conical Mixer CM and IKA® Conical Drier CD
For the following application areas:
Pharmaceuticals
Food
Cosmetics
Chemical products
Colours and lacquers
Plastics
Environmental technology
To suit your product range:
Pharmaceutical agents and additives
Metal powder
Colour pigments
Fine chemicals
Salts
Scoriae
Synthetic granules
The Conical Mixers and Driers from IKA® are available in 9 different vessel sizes ranging from 10 l to 4.000 l. Dry, free flowing, and dump or sticky bulk material, filter cakes and muds can be easily processed with our mixers and driers.
(continued on next page)
Attachments
■
Ika Mixers & Driers (Continued)
(continued)
Due to many years of experience with multiple applications in the food, chemical and pharmaceutical industries, IKA® is an ideal partner if your requirement is for process plants, in which mixing and drying of bulk material are only one of the process steps. Our engineers will also be pleased to inform you about incorporation of powders or granules into liquids. Contact us!
The Conical Mixers and the Conical Driers are available in following sizes:
Attachments
■
Ika Mixers & Driers (Continued)
(continued)

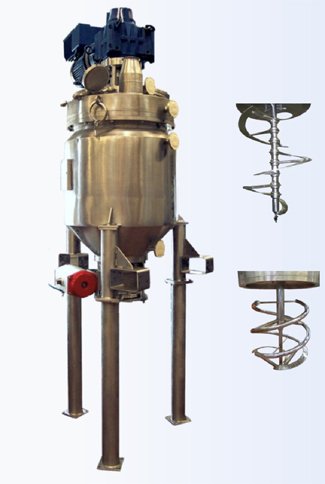

The Conical Drier
For more information, please visit:
href="https://edir.bulk-online.com/profile/8974-ika-werke.htm" target="blank">https://edir.bulk-online.com/profile/8974-ika-werke.htm
Attachments
■

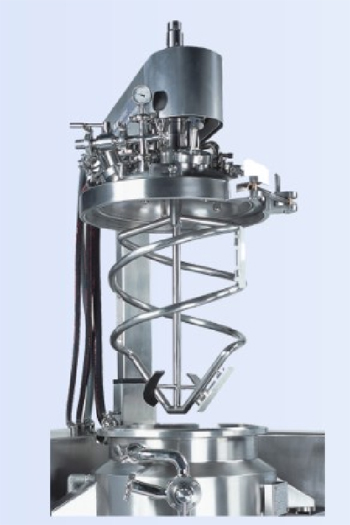

IKA Mixers & Driers
IKA® Conical Mixer and IKA® Conical Drier for bulk materials and powders
The Conical Mixer has a spiral agitator for efficient but gentle mixing
The Conical Drier has a double start, heatable spiral agitator for uniform heat transfer
for improved drying and shorter drying time
(lower part of photo)
(continued on next page)
