With its new SORTEX K sorting unit, the Buhler Sortex business unit in London has set new standards in the production of safe and clean foods.
Continuing innovation and improvement are central to any market leader’s drive to consolidate or even strengthen its market position. The Buhler Sortex business unit is once again demonstrating its leadership with the rollout of its two new SORTEX K optical sorters, which have been designed specifically for the fresh and frozen vegetable market sectors. The technology, which has proved its worth in the SORTEX Z+ dry sorting units, is now being applied in revolutionary solutions in the facilities of fresh and frozen vegetable processors.
In-feed vibrator
The SORTEX K is available in two versions, a Powerslide™ belt version for fresh produce and a chute version for frozen products. The new unit builds on the success of the Niagara model, of which more than 200 are installed worldwide. Both versions use Sortex-approved in-feed vibrators, which ensure a constant and even flow of product. A semi-vertical chute feeds the optical system for frozen products while a Powerslide™ belt fitted with an automatic belt tracking system is used for fresh produce. Importantly, the Powerslide™ and the chute configuration allows the cameras and the background lamps to be positioned at the front and rear rather than above and below the product flow. This eliminates the need for additional cleaning to keep the sorter running.
Successful trial installations
Prior to the official launch in October 2006, the first SORTEX K trial sorters went into service in Spain. The fresh-produce sorter with the Powerslide™ belt feeder handles bean and root vegetables for Iberfresco SA in Olmedo near Valladolid.
The new frozen-product sorter is undergoing thorough testing at Ultracongelades de Cortes in Zaragoza. Factory manager Juan Jsus Perez Villarroya is delighted with its performance. “We have so far applied the new sorter for processing frozen peas, French green beans, and flat Romano type beans, and we are very impressed with the results. We are learning how very easy the SORTEX K is to use.”
Leading-edge specifications
The SORTEX K is somewhat wider than its Niagara predecessor, enabling it to deliver ten to fifteen percent higher throughput. In the new SORTEX K, four newly designed, high-definition cameras register the colors. With their greatly enhanced color separation capability, they allow easy removal of product with even the smallest and most subtle color defects.
In applications involving frozen products, two InGaAs cameras are used in addition to the four high-definition cameras. The InGaAs technology uses the invisible spectrum to take removal of foreign material to a new level. David McCambridge, Sortex Senior Applications Engineer, says: “I have never before seen such efficient removal of all types of foreign material and such small color defects. The amount of acceptable product removed along with the rejects is much lower than we had expected. Product recovery is amazing.”
Pneumatic ejectors

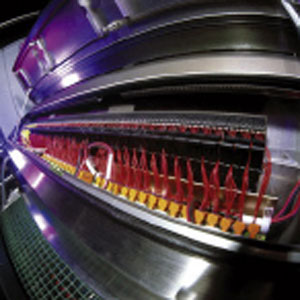

Anything selected as unacceptable by the cameras is removed by 256 pneumatic ejectors. They have been designed specifically for the SORTEX K and are more powerful than previous designs, improving rejection of defects. They are linked to an ejector system that fires the ejectors at the profile of an individual reject rather than a broad area. As a result, the amount of good product lost in error along with the rejects is reduced significantly.
The PRO-file shape recognition system removes defects that do not conform to the normal product shape. This powerful tool, operating simultaneously with the color cameras, removes rejects which – while of an acceptable color – do not have the correct shape. Typical examples are pods in peas, stalks and stems in beans and berries, or misshapen carrots.
Trouble-free productivity
The PRO-file shape recognition system allows the SORTEX K to operate at higher speeds due to its ability to recognize touching objects. A new, easy-touse and rapid user interface is another important feature of the new sorter. Up to 50 product modes can be saved, and no “extras” are required for different products. Future units will be available with the “K Anyware” software. It will enable Sortex engineers to link up anywhere in the world through the internet. This will allow many problems to be prevented in the first place and swift corrective action to be taken to the few that do occur. The new SORTEX K sorter is the result of substantial investment in research and development by Sortex’s in-house team. It is further proof of Sortex’s commitment to the development of its own technologies rather than purchasing systems off the shelf.
Steady innovation
Bruno Kilshaw, Sortex Managing Director, sees the SORTEX K launch as evidence of the company’s commitment to continuing R&D and product improvement and its responsiveness to processors’ needs. “Increasing consumer expectations and more restrictive legislation in every advanced market mean that food safety and cleanliness standards are becoming increasingly rigorous.”
Buhler is a global Technology Group and a system partner for the supply of plant, equipment, and process know-how in the fields of Food Processing, Chemical Engineering, and Die Casting, with some 6,200 employees worldwide.
Buhler Optical Sorter
SORTEX K sets new standards
With its new SORTEX K sorting unit, the Buhler Sortex business unit in London has set new standards in the production of safe and clean foods.
Continuing innovation and improvement are central to any market leader’s drive to consolidate or even strengthen its market position. The Buhler Sortex business unit is once again demonstrating its leadership with the rollout of its two new SORTEX K optical sorters, which have been designed specifically for the fresh and frozen vegetable market sectors. The technology, which has proved its worth in the SORTEX Z+ dry sorting units, is now being applied in revolutionary solutions in the facilities of fresh and frozen vegetable processors.
In-feed vibrator
The SORTEX K is available in two versions, a Powerslide™ belt version for fresh produce and a chute version for frozen products. The new unit builds on the success of the Niagara model, of which more than 200 are installed worldwide. Both versions use Sortex-approved in-feed vibrators, which ensure a constant and even flow of product. A semi-vertical chute feeds the optical system for frozen products while a Powerslide™ belt fitted with an automatic belt tracking system is used for fresh produce. Importantly, the Powerslide™ and the chute configuration allows the cameras and the background lamps to be positioned at the front and rear rather than above and below the product flow. This eliminates the need for additional cleaning to keep the sorter running.
Successful trial installations
Prior to the official launch in October 2006, the first SORTEX K trial sorters went into service in Spain. The fresh-produce sorter with the Powerslide™ belt feeder handles bean and root vegetables for Iberfresco SA in Olmedo near Valladolid.
The new frozen-product sorter is undergoing thorough testing at Ultracongelades de Cortes in Zaragoza. Factory manager Juan Jsus Perez Villarroya is delighted with its performance. “We have so far applied the new sorter for processing frozen peas, French green beans, and flat Romano type beans, and we are very impressed with the results. We are learning how very easy the SORTEX K is to use.”
Leading-edge specifications
The SORTEX K is somewhat wider than its Niagara predecessor, enabling it to deliver ten to fifteen percent higher throughput. In the new SORTEX K, four newly designed, high-definition cameras register the colors. With their greatly enhanced color separation capability, they allow easy removal of product with even the smallest and most subtle color defects.
In applications involving frozen products, two InGaAs cameras are used in addition to the four high-definition cameras. The InGaAs technology uses the invisible spectrum to take removal of foreign material to a new level. David McCambridge, Sortex Senior Applications Engineer, says: “I have never before seen such efficient removal of all types of foreign material and such small color defects. The amount of acceptable product removed along with the rejects is much lower than we had expected. Product recovery is amazing.”
Pneumatic ejectors
Anything selected as unacceptable by the cameras is removed by 256 pneumatic ejectors. They have been designed specifically for the SORTEX K and are more powerful than previous designs, improving rejection of defects. They are linked to an ejector system that fires the ejectors at the profile of an individual reject rather than a broad area. As a result, the amount of good product lost in error along with the rejects is reduced significantly.
The PRO-file shape recognition system removes defects that do not conform to the normal product shape. This powerful tool, operating simultaneously with the color cameras, removes rejects which – while of an acceptable color – do not have the correct shape. Typical examples are pods in peas, stalks and stems in beans and berries, or misshapen carrots.
Trouble-free productivity
The PRO-file shape recognition system allows the SORTEX K to operate at higher speeds due to its ability to recognize touching objects. A new, easy-touse and rapid user interface is another important feature of the new sorter. Up to 50 product modes can be saved, and no “extras” are required for different products. Future units will be available with the “K Anyware” software. It will enable Sortex engineers to link up anywhere in the world through the internet. This will allow many problems to be prevented in the first place and swift corrective action to be taken to the few that do occur. The new SORTEX K sorter is the result of substantial investment in research and development by Sortex’s in-house team. It is further proof of Sortex’s commitment to the development of its own technologies rather than purchasing systems off the shelf.
Steady innovation
Bruno Kilshaw, Sortex Managing Director, sees the SORTEX K launch as evidence of the company’s commitment to continuing R&D and product improvement and its responsiveness to processors’ needs. “Increasing consumer expectations and more restrictive legislation in every advanced market mean that food safety and cleanliness standards are becoming increasingly rigorous.”
Buhler is a global Technology Group and a system partner for the supply of plant, equipment, and process know-how in the fields of Food Processing, Chemical Engineering, and Die Casting, with some 6,200 employees worldwide.
