Re: Debaging Handwarmer Bags
Originally posted by Bernd Wurster
We are looking for equipment to debag handwarmer bags (weight 65 g, size 170 x 120 x 5 mm) and to separate quickly the granular content (iron, activated carbon, etc.) from the plastic envelopes. Capability 1800 bags per hour.
Short of sliding them by hand over a bag slitter mounted on a perforated table of some sort I can not think of anything else that would work-did you have a problem with the formulation or quality of materials for the heat source? ■
Re: Debaging Handwarmer Bags
Thank you for your reply. There are 1800 bags to be opened per hour. Therefore, we need a machine such as a punching press or a two-shaft shredder. The bag opener should cut the bag into a few pieces only, enough pieces to allow a complete emptying of the bag, but not too many and consequently small pieces, which in the following step would pass the screen and contaminate the granular material.
The handwarmers are returned from distribution channels, mainly because they reached lifetime. Their granular content, however, is still fully active and could be reused, i.e. added in a small quantity to fresh material. ■
Re: Debaging Handwarmer Bags
The type of automtic bagging machine shown in the link below may be an option:
http://www.wamgroup.com/index.asp?in...ch=63&idLang=1
Crudely, you throw the bag in, the rotating drum screen / rotating agitator breaks the bag up, the powder falls through the screen and the bits of bag carry on over the screen to a separate outlet.
It is designed for 25 kg type bags but I would guess that a device like this should work reasonably well with smaller bags as well? ■
Re: Re: Debaging Handwarmer Bags
Originally posted by lzaharis
Short of sliding them by hand over a bag slitter mounted on a perforated table of some sort I can not think of anything else that would work-did you have a problem with the formulation or quality of materials for the heat source?
Attachments
■
Re: Re: Debaging Handwarmer Bags
Dear Sir.
We are proud to present you the LaborSaveTM.
And we are looking for cooperation in Australia to represent the LaborSave in this area.
If you find yourself suitable for it. Pls. call me back.
LaborSave already have a reference in: Argentina, Belgium, Holland, Germany. Turkey, France, Spain, Israel, Italy, Sweden, Finland etc etc.

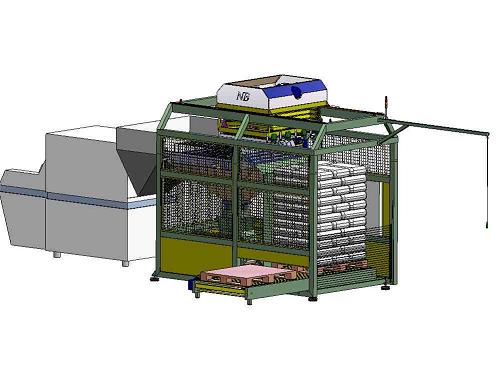

For the first time in the world, a fully automatic sack opening and emptying machine.
More then 1300 sack per hour with just one operator!!!
The loading of the full pallets by forklift operator. And unloading of the empty pallet is done automatically.
Everything else is performed without any human intervention. Each cycle, LaborSaveTM mechanically grabs a layer of sacks,
(it's doesn't mater for the LaborSaveTM – the orientation, position, No' of sacks per leyer and the kind of sacks)
slits the sacks without any loss of contents, and empties the sacks into a hopper, assuring complete utilization of the contents.
The LaborSaveTM handles an average of four/five layers per minute.
The use of mechanical grabbers facilitates the handling of most types of sacks:
plastic, paper and burlap - single or multi-layered - filled with granular or powdered products.
LaborSaveTM enables the handling of most methods of sack arrangement on the pallet, and inclinations of up to 25 cm.
up to 99.99% of the contents are collected in most cases, reducing wastage.
The cutting is very sharp and clean with out any contamination.
LaborSaveTM is controlled by a menu-driven, user-friendly automatic control system, enabling the control of system parameters.
LaborSaveTM has a level sensor in the hopper to pause the cycle when it is full.
LaborSaveTM designed for maintenance free.
LaborSaveTM machines, already working in a very big logistic companies and factories. Plastic, food and chemicals industries.
You also can watch the LaborSaveTM at work in our web site www.LaborSave.com
Pls. don't be hesitate to call me for any advanced questions
Attachments
■
Debagging Handwarmer Bags
Dear RPD and Itsik mann, thank you for your replies. You are absolutely right. There are several suppliers of bag opening machines for comparatively big bags, such as cement, lime and pigment bags as well as garbage bags in recycling plants. What we need, however, is a machine for opening and emptying comparatively small bags (weight 65 g, size 170 x 120 x 5 mm). If someone could provide useful information on a supplier of such a machine for small bags we would be grateful to receive this information. ■
Debaging handwarmer bags
We are looking for equipment to debag handwarmer bags (weight 65 g, size 170 x 120 x 5 mm) and to separate quickly the granular content (iron, activated carbon, etc.) from the plastic envelopes. Capability 1800 bags per hour. ■
